Liquid to Liquid Static Mixer

Liquid to Liquid Static Mixer

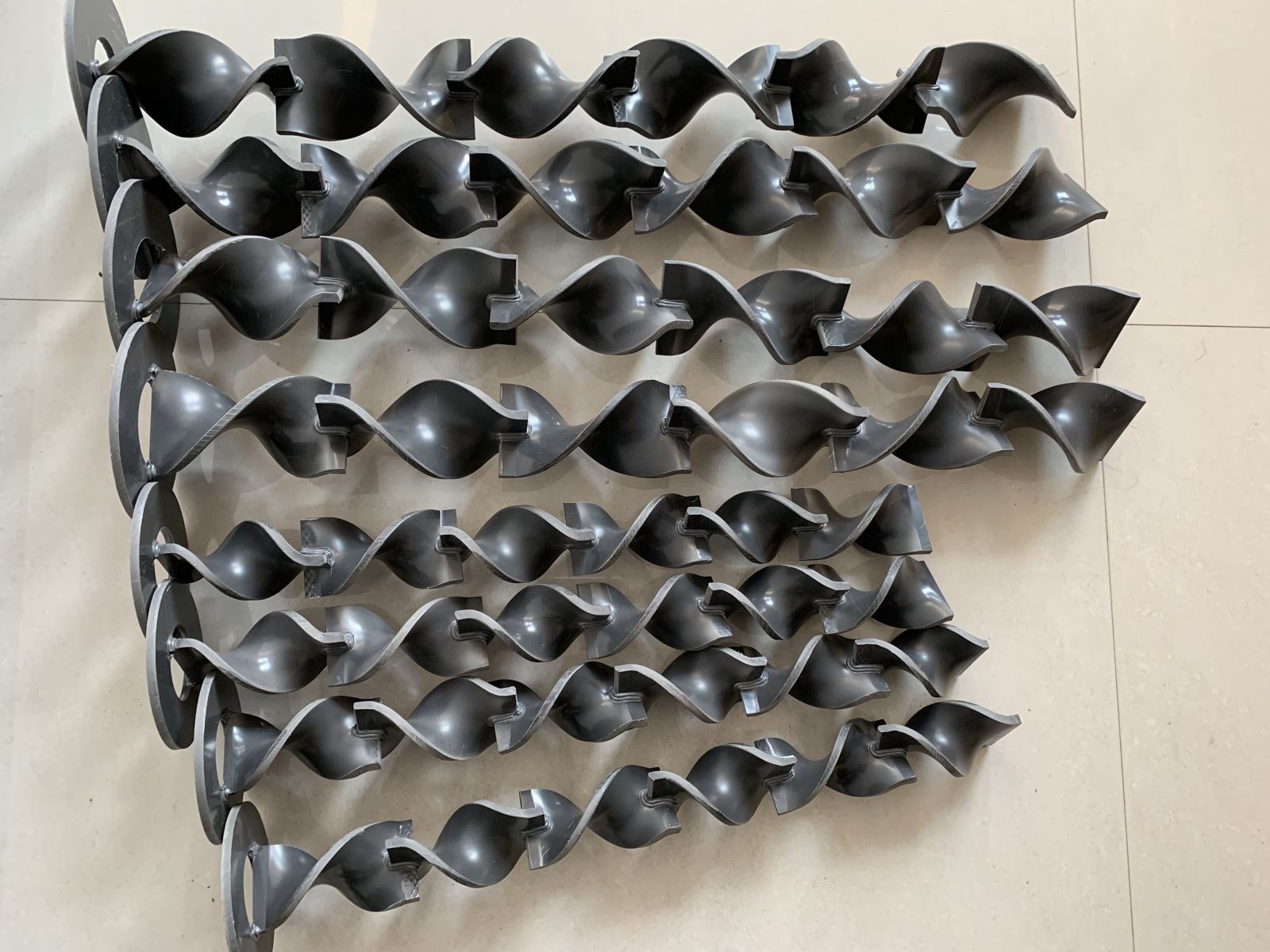

static mixer is precision engineered device for the continuous mixing of fluid materials. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. One design of static mixer is the plate-type mixer and another common device type consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included :

SS304, SS316L, PP, TEFLON, PVDF, PVC, CPVC, Acetal Resin etc.


applications include mixing two-component adhesives and sealant;  waste water treatment and chemical processing. Static mixers can be used in the refinery and oil and gas markets as well, for example in bitumen processing or for desalting crude oil. In polymer production, static mixers can be used to facilitate polymerization reactions or for the admixing of liquid additives.

Static mixer could be used for:

Liquid - Liquid mixing

Liquid-Gas mixing

Gas- Gas mixing
