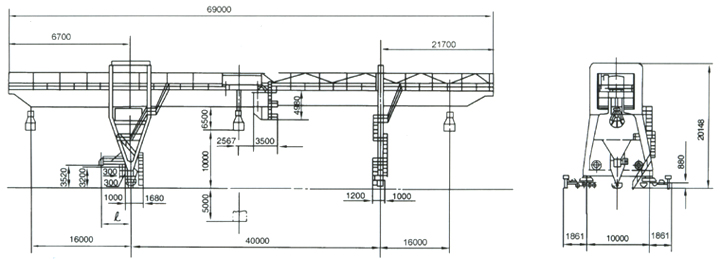

Loading and Unloading Gantry Crane 5t

Loading and Unloading Gantry Crane 5t

Loading and Unloading Gantry Crane 5t


Technological Parameter


Capacity

t

5

Span

m

40

Max.Lifting Height

15(which under rail 5m)

Working System



A7

Speed

Lifting

m/min

51

CT

140

LT

24

Motor Machinery Power

kw

125

Grab

Volume

m3

1.5

Proportion

t/m3

>1-1.7

Coal Scuttle

Volume

m3

25

Max.Proportion of capacity

t/m3

0.8-1.0

Width of blow belt

mm

800

Production Capacity

t/h

140-250

Weight

Trolley

t

20

Total Weight

254.1

Trolley working is Max.Wind Pressure

KN

250

Max.Wheel Load

KN

299

Rail

kg/m

43

Power Supply



Three-phase AC
